Flinks Integration Flows: Standard vs. Webhook

Modified on Mon, 13 Apr at 5:52 PM

Flinks Integration Flows: Standard vs. Webhook

Topic: Step-by-step walkthrough of the Flinks Connect standard polling flow and webhook-based integration flow | Product: Flinks Connect · API · Webhooks | Effort: Shared Phase 1; diverge at back-end data retrieval strategy

Overview: Flinks supports two back-end integration patterns after a user connects via Flinks Connect. The Standard Flow has your server poll the Flinks API for account data. The Webhook Flow has Flinks push data to your server automatically — no polling required. Both flows share the same Phase 1 front-end authentication. Phase 3 (Attributes API) is optional in both flows and always requires an on-demand API call.

In this article

#	Section	What you'll find
1	Standard Integration Flow	Flinks Connect + polling API — Phase 1, 2, and 3
2	Webhook Integration Flow	Flinks Connect + webhook back-end — Phase 1, 2, and 3
3	Flow Comparison	Side-by-side differences across all phases
4	Quick Reference — Key Endpoints	Endpoint summary table
5	Related Resources	Links to Flinks documentation

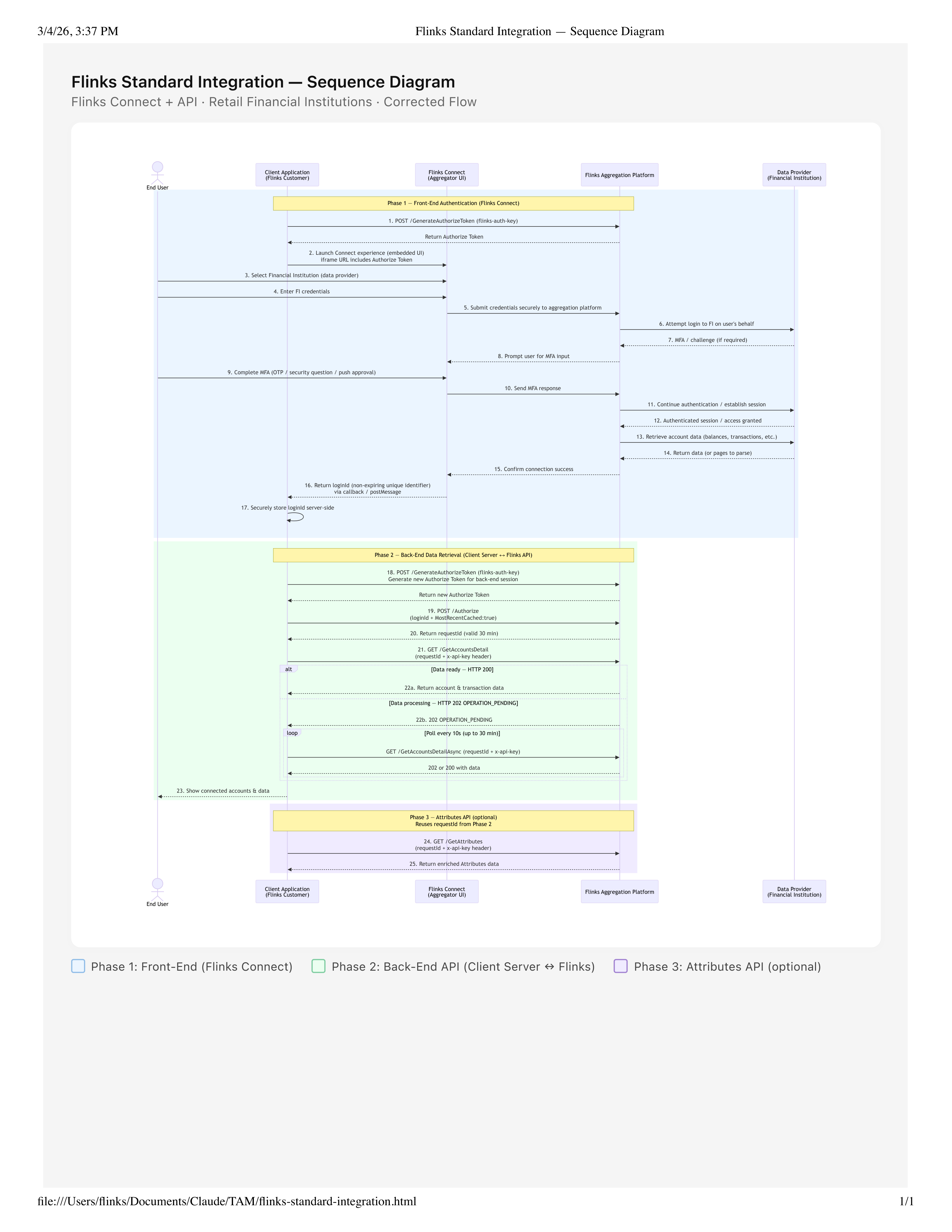

1. Standard Integration Flow

Flinks Connect + API · Retail Financial Institutions · Corrected Flow

Phase 1: Front-End (Flinks Connect)

Phase 2: Back-End API (Client Server ↔ Flinks)

Phase 3: Attributes API (optional)

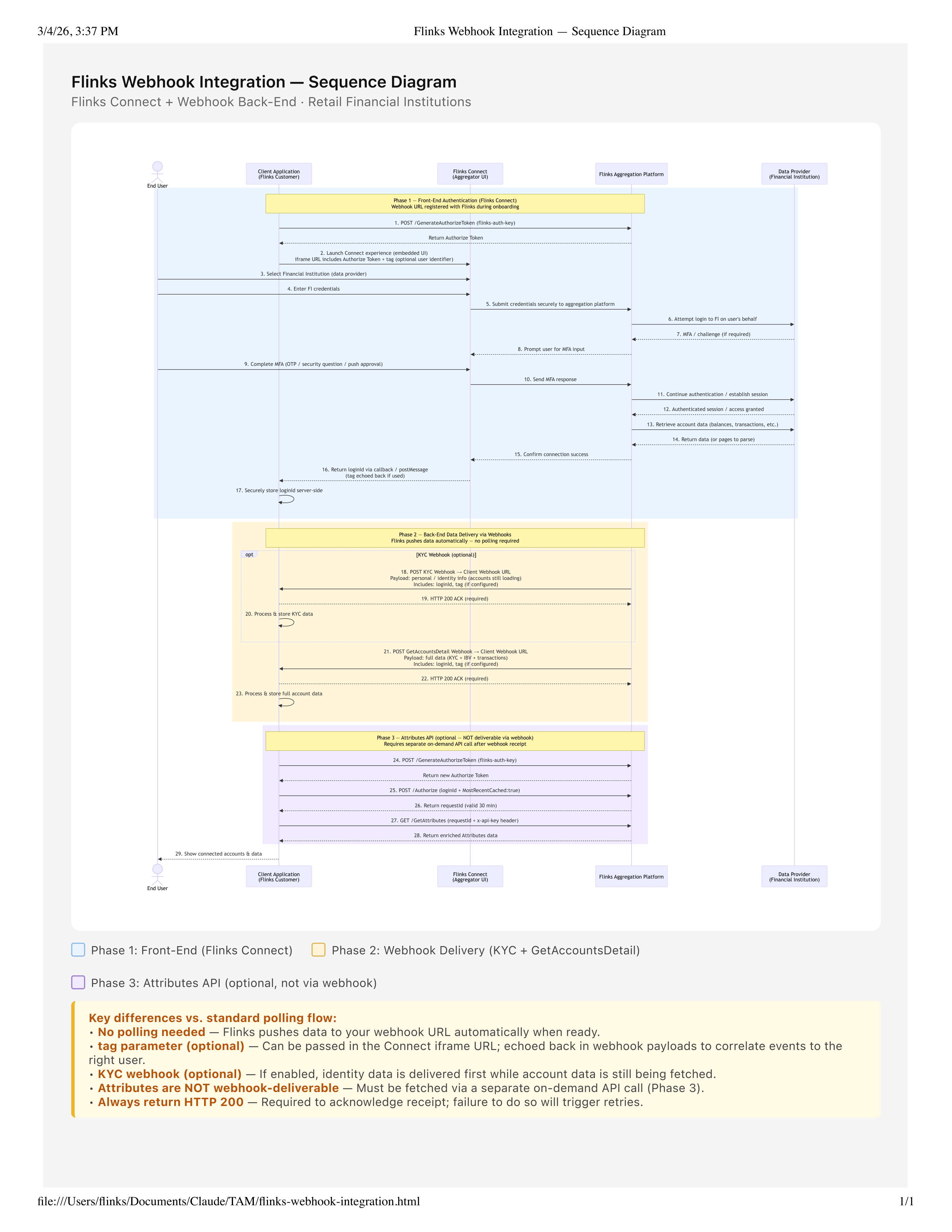

2. Webhook Integration Flow

Flinks Connect + Webhook Back-End · Retail Financial Institutions

Phase 1: Front-End (Flinks Connect)

Phase 2: Webhook Delivery (KYC + GetAccountsDetail)

Phase 3: Attributes API (optional, not via webhook)

Key differences vs. standard polling flow:
• No polling needed — Flinks pushes data to your webhook URL automatically when ready.
• tag parameter (optional) — Can be passed in the Connect iframe URL; echoed back in webhook payloads to correlate events to the right user.
• KYC webhook (optional) — If enabled, identity data is delivered first while account data is still being fetched.
• Attributes are NOT webhook-deliverable — Must be fetched via a separate on-demand API call (Phase 3).
• Always return HTTP 200 — Required to acknowledge receipt; failure to do so will trigger retries.

3. Flow Comparison

	Standard Flow	Webhook Flow
Phase 1	Identical	Identical
Phase 2 mechanism	Client polls Flinks API	Flinks pushes to client endpoint
Polling required	Yes — every 10s, up to 30 min	No
Webhook URL required	No	Yes — registered at onboarding
KYC / identity early delivery	No — all data returned together	Yes — optional KYC webhook
`tag` parameter	Not applicable	Optional — echoed in all payloads
HTTP 200 ACK required	No	Yes — for each webhook received
Phase 3 — Attributes API	Reuses `requestId` from Phase 2	Requires new GenerateAuthorizeToken → Authorize → GetAttributes
Attributes via webhook	Not available	Not available
Back-end complexity	Polling loop + timeout handling	Webhook receiver + ACK logic

4. Quick Reference — Key Endpoints

Endpoint	Method	Phase	Description
`/GenerateAuthorizeToken`	POST	1, 2, 3	Generate an Authorize Token using `flinks-auth-key`
`/Authorize`	POST	2, 3	Exchange `loginId` for a `requestId` (30 min TTL)
`/GetAccountsDetail`	GET	2 (Standard)	Retrieve account and transaction data; returns 200 or 202
`/GetAccountsDetailAsync`	GET	2 (Standard)	Poll for data when initial call returned 202; every 10s up to 30 min
`/GetAttributes`	GET	3 (Both)	Retrieve enriched Attributes data; requires active `requestId`
