How to test an OAuth connection flow with Flinks Connect iframe (Front End)

0. Fetching the instance credentials

• /toolbox/ instance (Canada and the US)

  • iframe: https://toolbox-iframe.private.fin.ag/v2/?demo=true

  • API: https://toolbox-api.private.fin.ag/

  • CustomerId: 43387ca6-0391-4c82-857d-70d95f087ecb

  • Bearer Token: O2r9FLhO7PBqz9L

  • flinks-auth-key (/GenerateAuthorizeToken): c4569c54-e167-4d34-8de6-f4113bc82414

  • x-api-key (Aggregation endpoints): 3d5266a8-b697-48d4-8de6-52e2e2662acc

• DEV, UAT, PROD instance

  • Retriving the instance credentials on the Flinks Dashboard

  • If your instance has the flinks-auth-key and x-api-key enabled, please contact integration@flinks.com to request the secret links associated with these tokens.



1. Frontend Solution

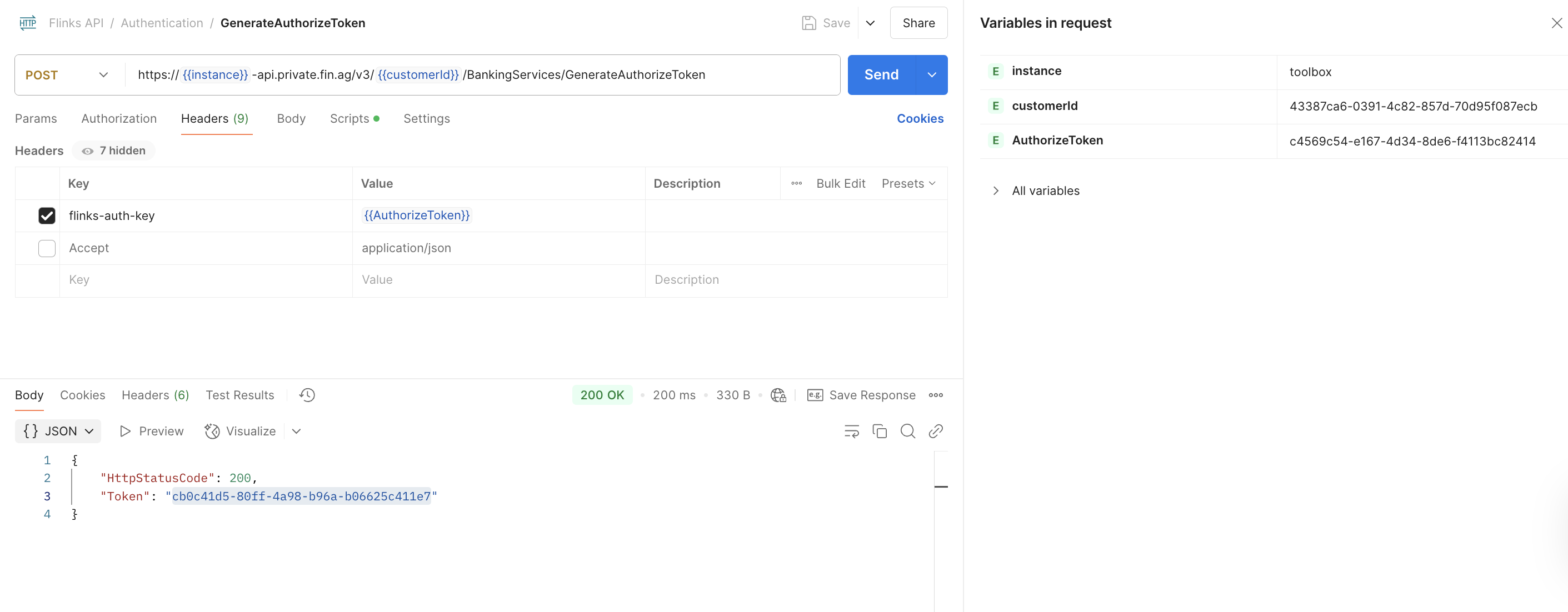

1.1. Authorize Token

• API: /GenerateAuthorizeToken

• Input: {{customerid}}, {{instance}}, {{flinks-auth-key}}

• Output: {{token}}

Example:

1.2. Flinks Connects

• iFrame: https://{{instance}}-iframe.private.fin.ag/v2/?demoOutbound=true&authorizeToken={{token}}

• Input: {{instance}}, {{token}}

• Output: {{loginid}}

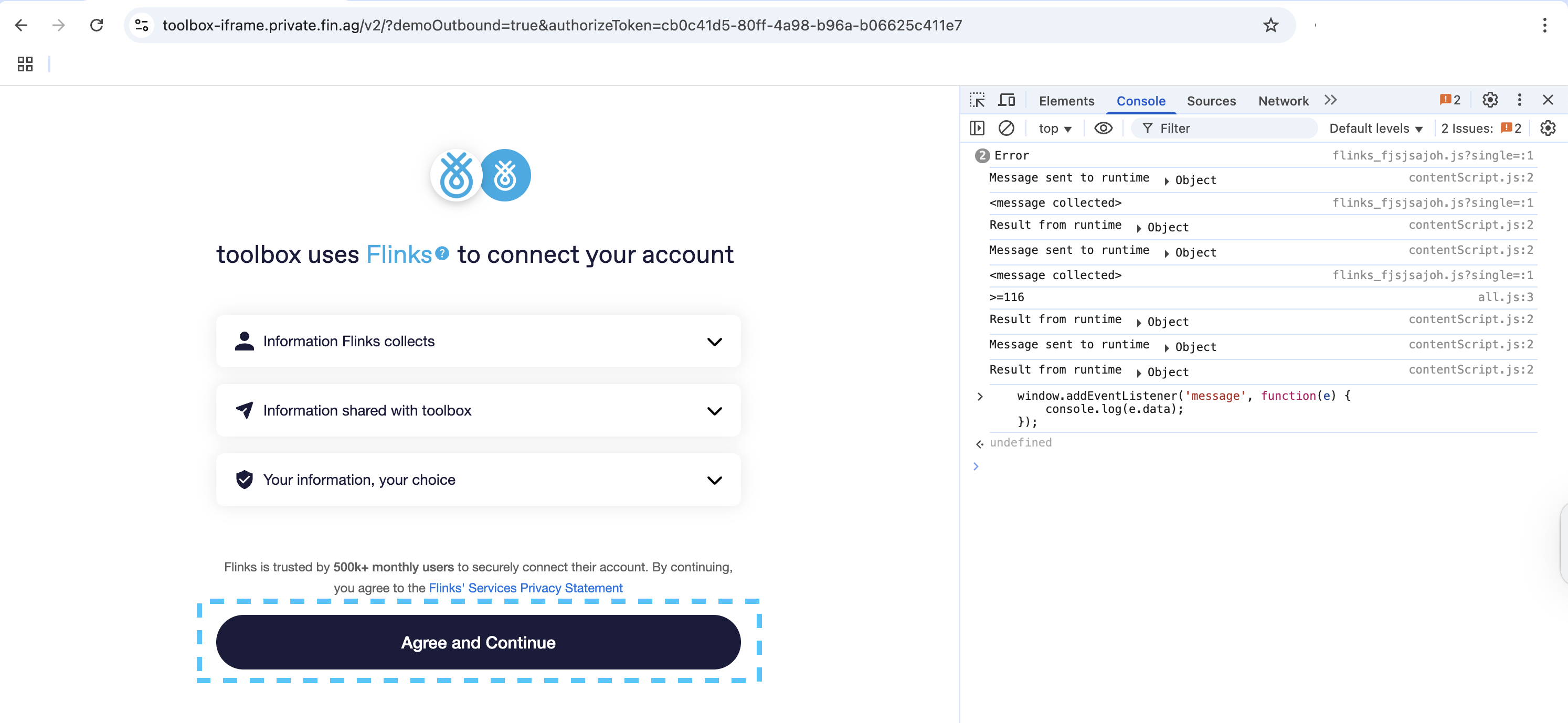

1.2.1. iframe: Consent page

Example:

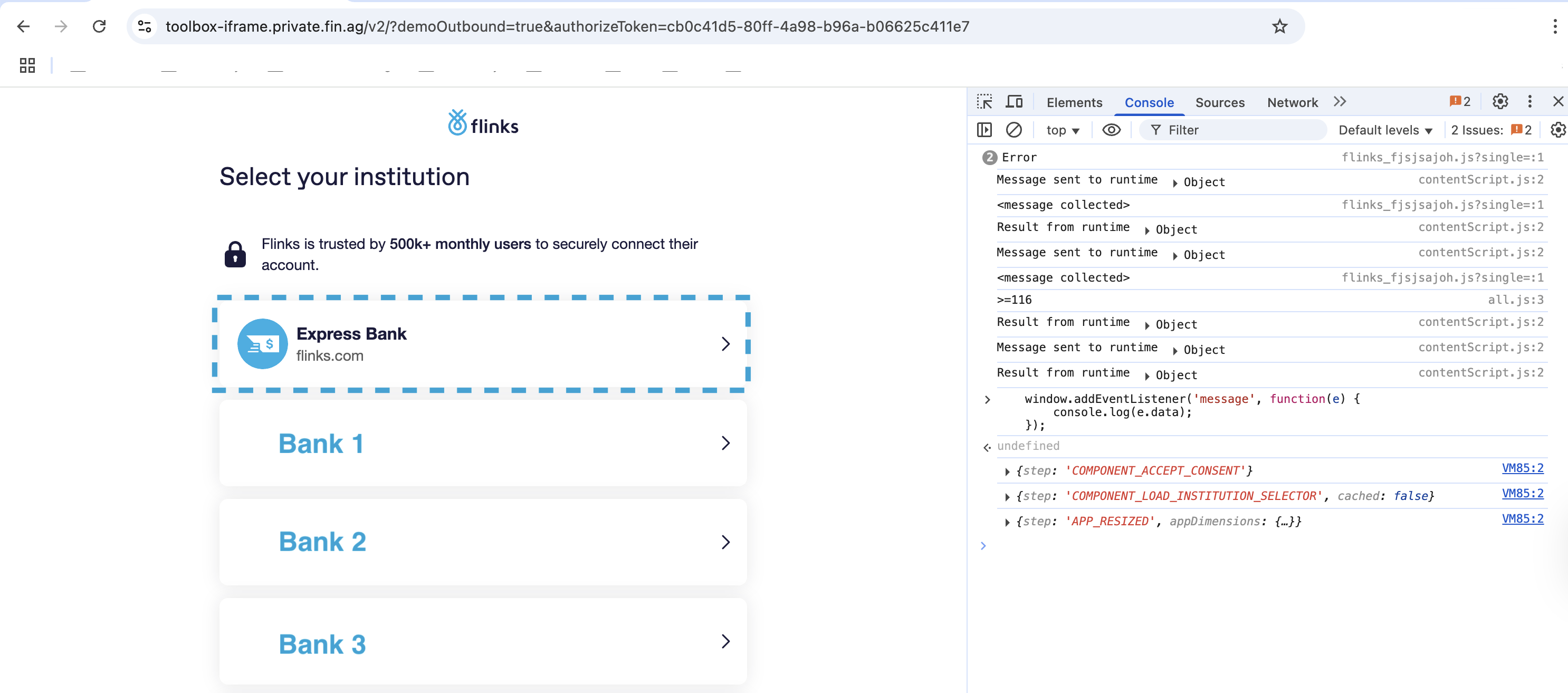

1.2.2. iframe: Financial Institution (FI) Selection

Example:

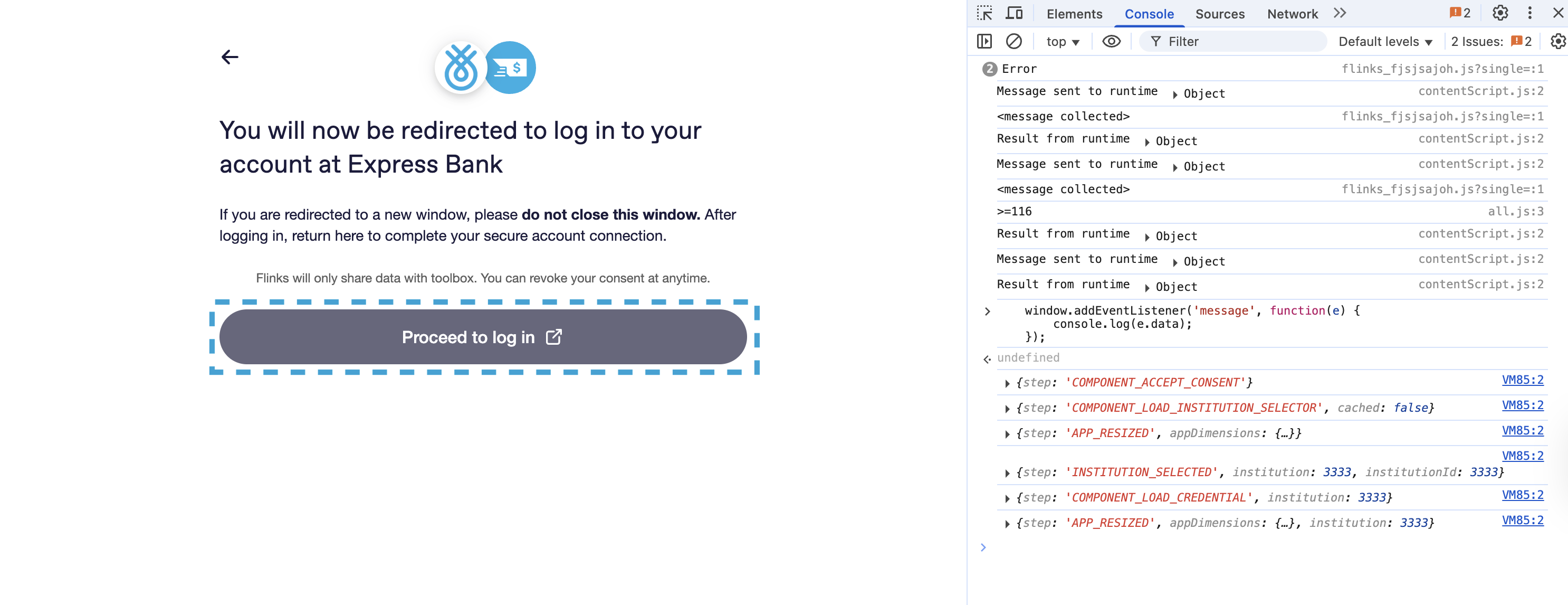

1.2.3. iframe: FI redirecting page

Example:

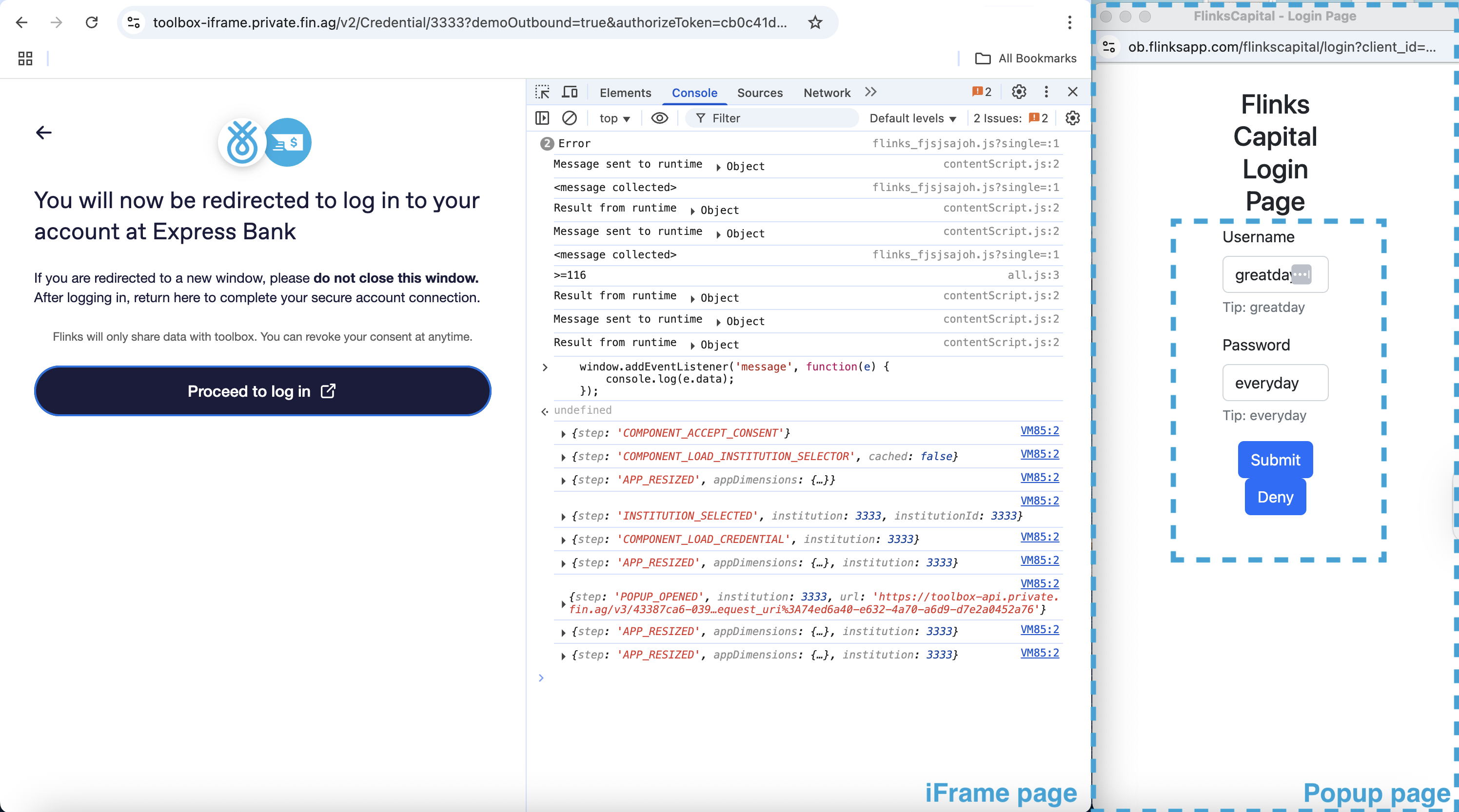

1.2.4. FI online banking page: Username/Password

Example:

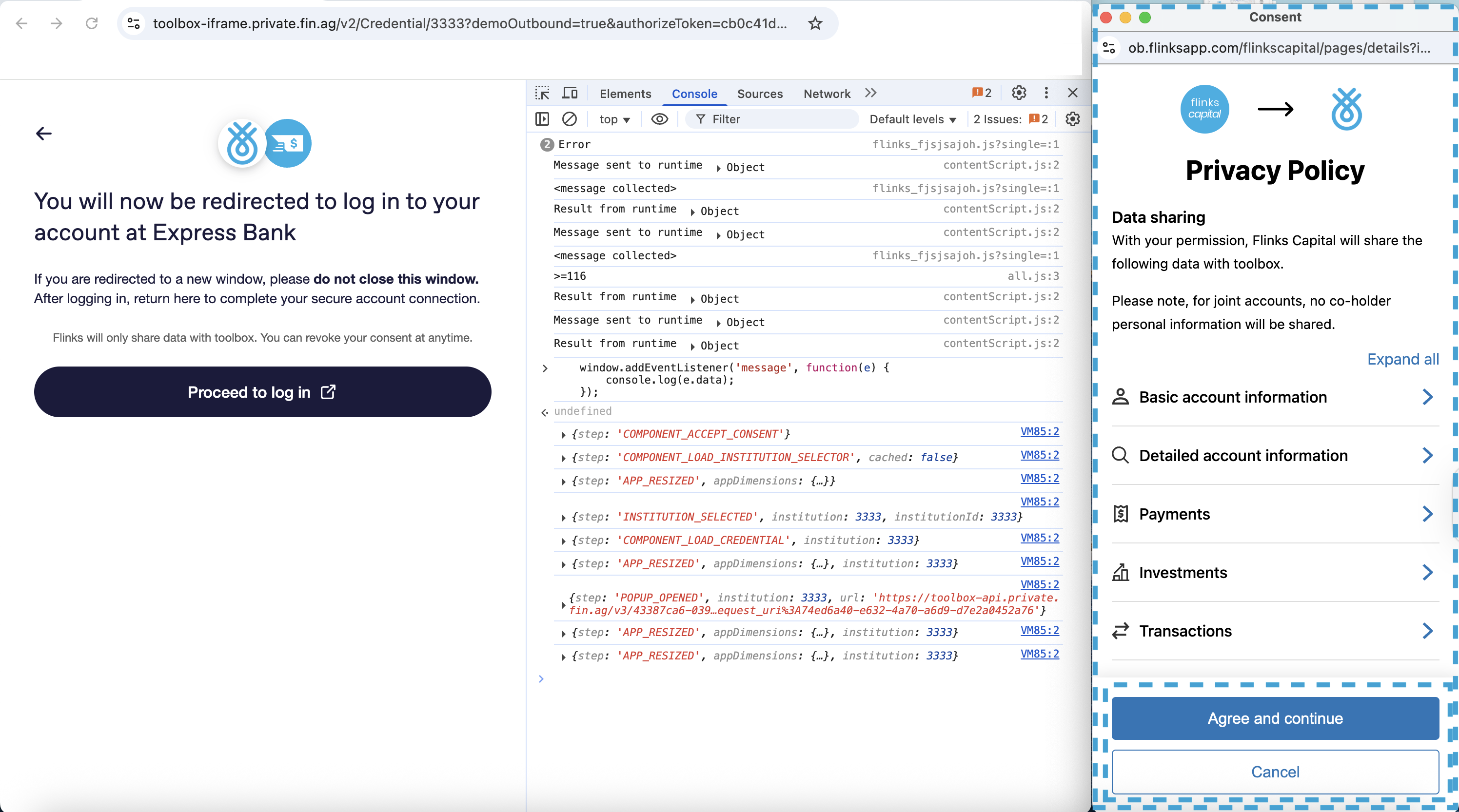

1.2.5. FI online banking page: Consent Screen

Example:

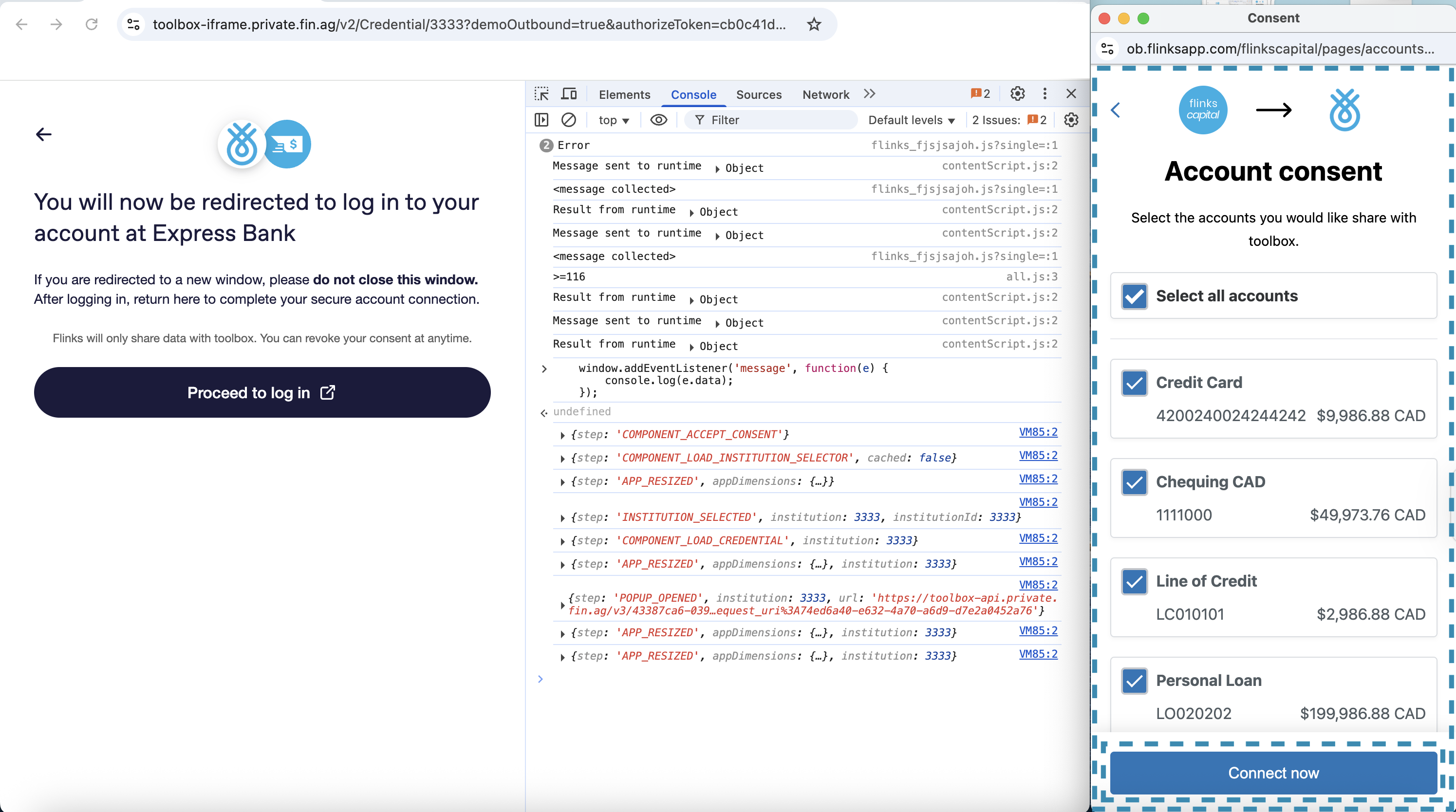

1.2.6. FI online banking page: Account Selection Page

Example:

1.2.7. iframe: Success Page

Example:
